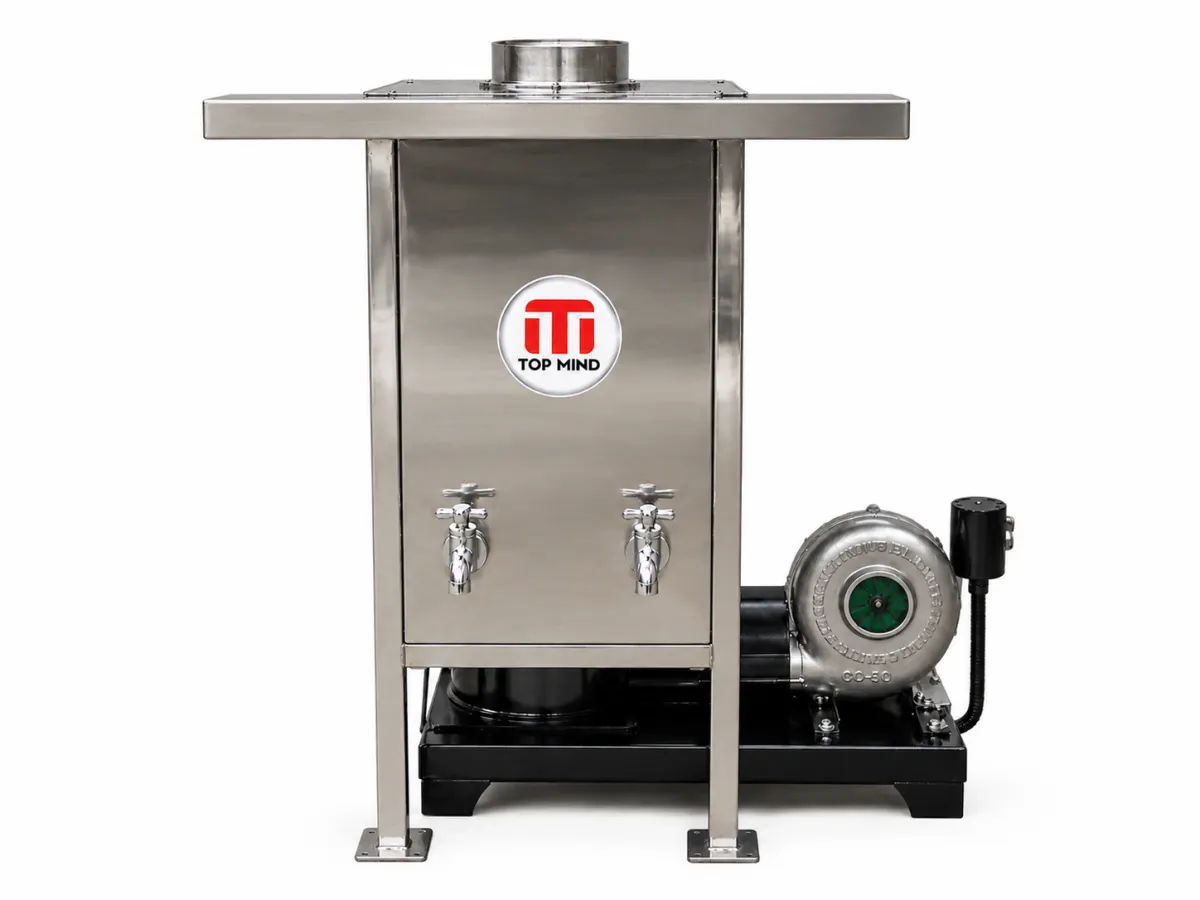

Water Heating Device
Top Mind Industries TMI-WHD Series Water Heating Devices (Hamaam) are heavy-duty, high-efficiency water heating systems designed for Hamaam applications, bathing facilities, institutional hot-water requirements and bulk water heating. The range is engineered for reliable and continuous operation, providing high thermal output with controlled fuel consumption.
The TMI-WHD series is constructed using SS 304 stainless steel, incorporating a robust water storage tank, high-performance heat exchange system and forced-air combustion arrangement. The units are designed to achieve water temperatures of up to 75°C under atmospheric operating conditions.
Available Capacities
Free Shipping
1 Year Warranty
30 Day Returns
24/7 Support
Technical Specifications
| Product Type | Water Heating Device / Hamaam |
| Available Storage Capacity | 300–1000 Litres |
| Maximum Heat Output Capacity | 3,000–30,000 kcal/hr |
| Rated Heat Input | Min. 4.8–12.9 kW / Max. 5.4–13.6 kW* |
| Rated Useful Heat Output (Pn) | 4.6–11.6 kW* |
| Thermal Efficiency – Full Load | 85.0% |
| Thermal Efficiency – Low Load | 90.0% |
| Useful Efficiency @ 30% Load | 88.0% |
| Maximum Water Temperature | Up to 75°C |
| Operating Pressure | Atmospheric |
| Tank Material | SS 304 Stainless Steel |
| Tank Thickness | 2 mm |
| Fuel Tank Capacity | 10 Litres |
| Estimated Fuel Consumption | 0.4–1.2 Ltr/hr* |
| Heat Exchange Surface Area | 0.3–1.0 m² |
| Approx. Empty Weight | 25–65 kg |
