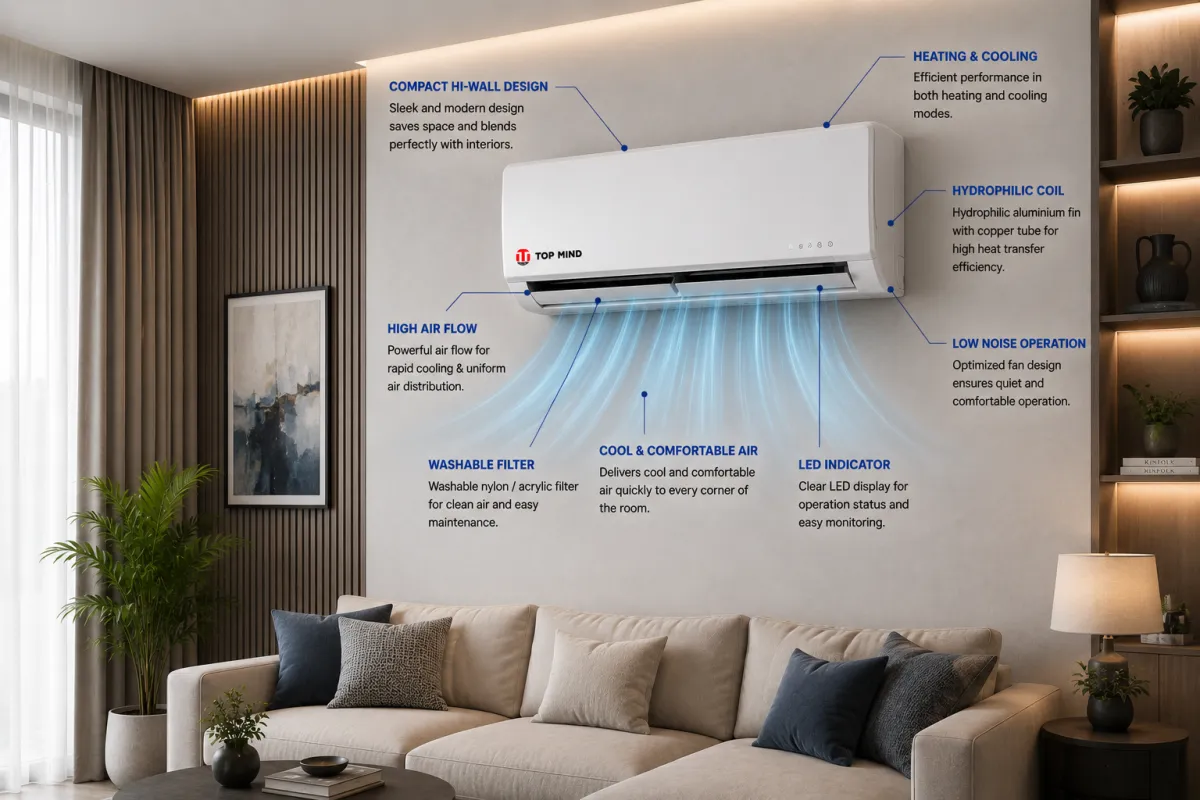

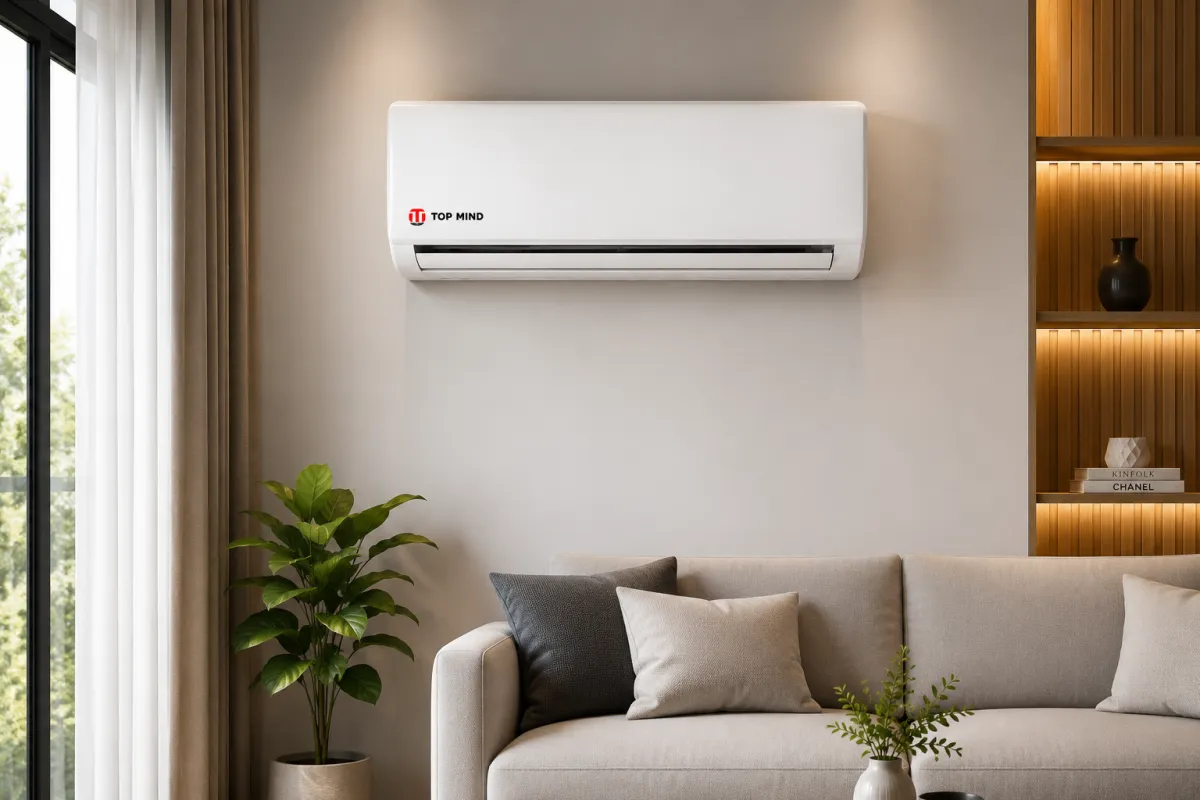

TOP MIND TMI-HW Series Hi-Wall Fan Coil Units are compact, high-performance hydronic air-conditioning units designed for efficient heating and cooling of residential, commercial, hospitality, institutional and other indoor spaces.
The units are wall-mounted and engineered to provide high air-flow performance, uniform air distribution, low operating noise and reliable thermal performance. The range incorporates a hydrophilic aluminium fin and copper tube coil, washable nylon/acrylic filtration and a high-efficiency fan motor for dependable operation.
Free Shipping
1 Year Warranty
30 Day Returns
24/7 Support
Technical Specifications
| Tonnage Capacity | 1.0–2.0 TR |
| Thermal Capacity (BTU/hr) | 12,000–24,000 BTU/hr |
| Thermal Capacity (Kcal/hr) | 3,024–6,048 Kcal/hr |
| Thermal Capacity (kW) | 3.5–7.0 kW |
| Air Volume Flow Rate | 400–800 CFM (679–1,359 m³/hr) |
| Acoustic Noise Level (High Speed) | 39.5–41.0 dB(A) |
| Standard Water Flow Rate | 545–1,090 LPH |
| Water Pressure Drop Across Coil | 18.5–22.0 kPa |
| Maximum Operating Pressure | 16 Bar |
| Coil Type | Hydrophilic Aluminum Fin / Copper Tube |
| Water Connection Size | 3/4" (19 mm) BSP |
| Power Supply | 230 V, 1 Phase, 50 Hz |
| Air Filter Type | Washable Nylon / Acrylic Filter |
| Operation | Heating & Cooling |
