Storage Water Heater
Category
Storage Water Heater

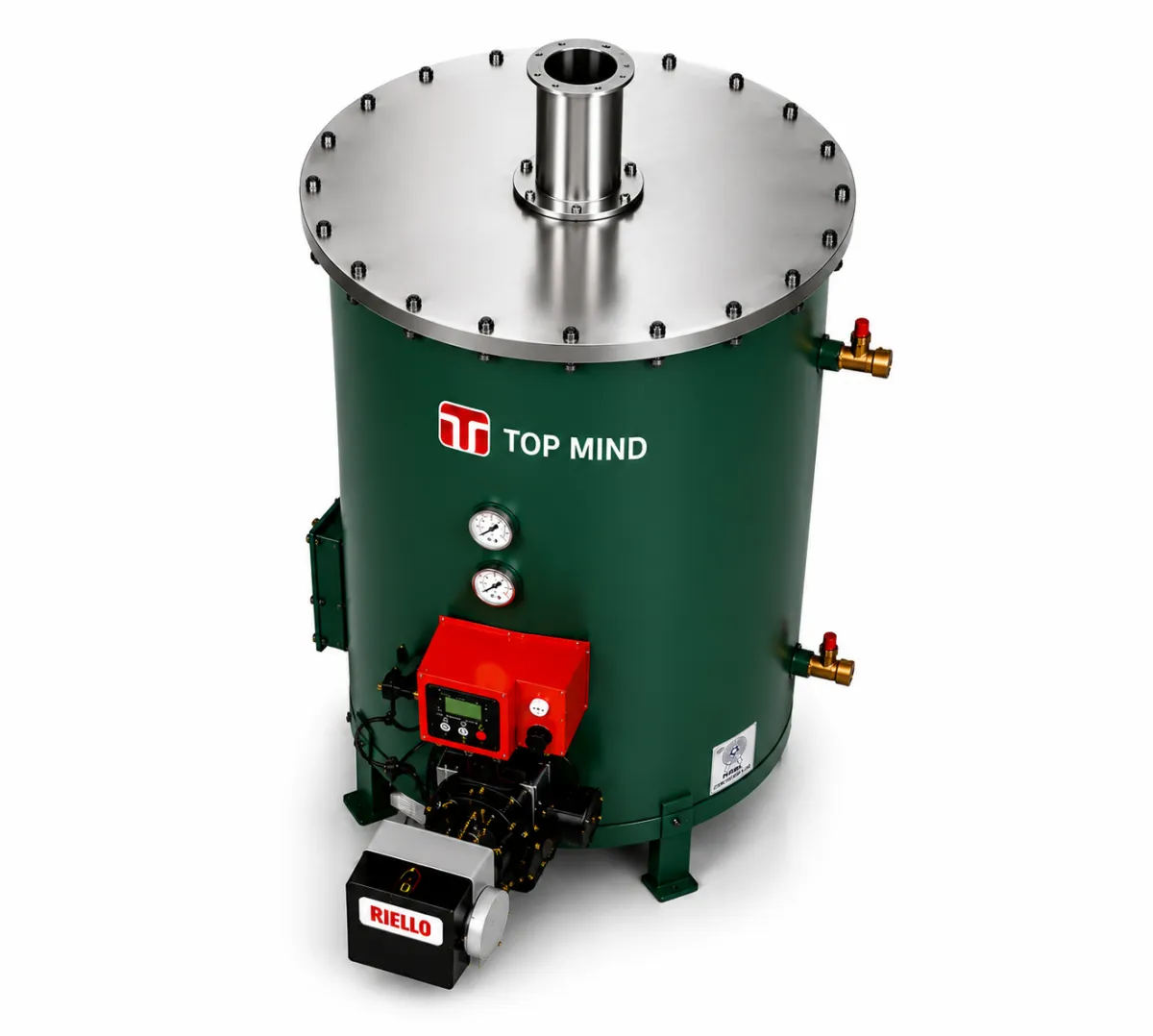

TOP MIND TMI-SWH, Storage Water Heater / Hamam is a premium industrial hot water generation system designed to deliver reliable, energy-efficient, and continuous hot water for commercial, institutional, and industrial applications. Available in capacities ranging from 200 Litres to 5000 Litres, the series combines robust construction with high thermal efficiency and dependable Riello oil burner technology to ensure long service life and consistent performance.
Manufactured using high-grade materials and engineered for demanding operating conditions, the TMI-SWH series offers excellent heat transfer, low fuel consumption, and easy maintenance, making it suitable for hotels, hospitals, schools, factories, and centralized hot water systems.
Available Capacities
Free Shipping
1 Year Warranty
30 Day Returns
24/7 Support
Technical Specifications
| Storage Capacity | 200–5000 Litres |
| Heat Output Capacity | 14,000–350,000 Kcal/hr |
| Rated Heat Input (Calculated) | 19.0–478.8 kW (Max.) |
| Rated Useful Heat Output | 16.3–407.0 kW |
| Useful Efficiency (Full Load) | 85% |
| Useful Efficiency (Low Load) | 90% |
| Useful Efficiency @30% Load | 88% |
| Maximum Water Temperature | 75°C |
| Maximum Admissible Temperature | 90°C |
| Minimum Return Water Temperature | 40°C |
| Operating Pressure | Atmospheric |
| Pressure Drop @ ΔT 10°C | 6–150 mbar |
| Pressure Drop @ ΔT 20°C | 2–50 mbar |
| Power Supply | 230V AC, Single Phase, 50Hz |
| Fuel Type | Diesel / Kerosene |
| Burner | Automatic Riello Oil Burner |
| Heat Exchange Surface Area | 0.6–15.0 m² |
| Volumetric Heat Load | 1231–1357 kW/m³ |
| Specific Heat Load | 27.1–272.0 kW/m² |
| Constant Pressure Drop | <1% |
