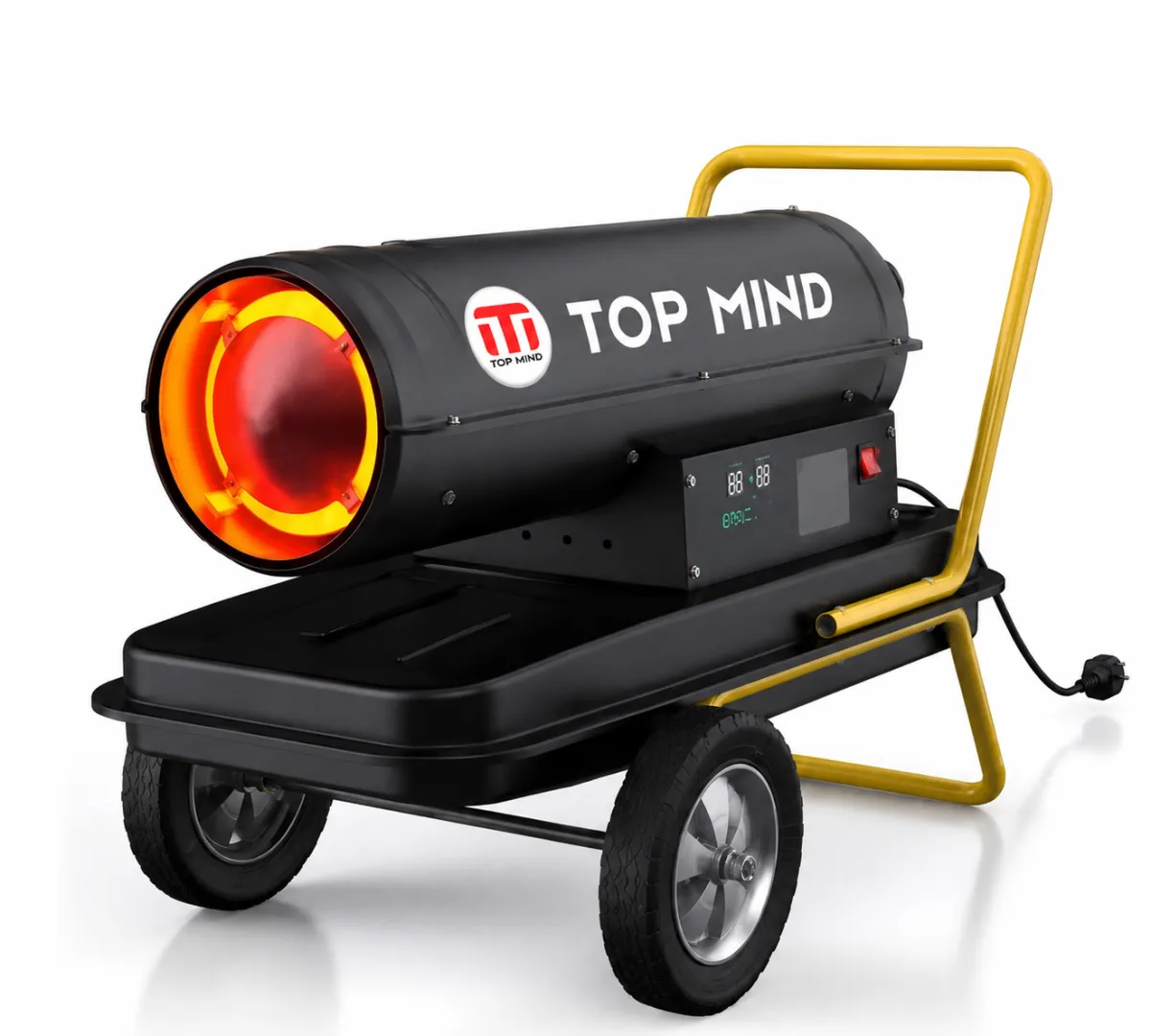

TOP MIND TMI-BZ Series Field Heating Devices are portable, high-performance heating systems engineered to provide rapid and reliable space heating in demanding field and industrial environments. The Bazooka Heating System combines a compact wheeled design, high heat output, efficient combustion and powerful air circulation to deliver effective heating over a wide range of applications.
The TMI-BZ range is available from 20,000 Kcal/hr to 70,000 Kcal/hr, making it suitable for localized heating as well as larger commercial, industrial and temporary spaces. The units incorporate a robust combustion and heat-exchange system, integrated fuel tank, forced-air circulation and safety-oriented operating controls.
Available Capacities
Free Shipping
1 Year Warranty
30 Day Returns
24/7 Support

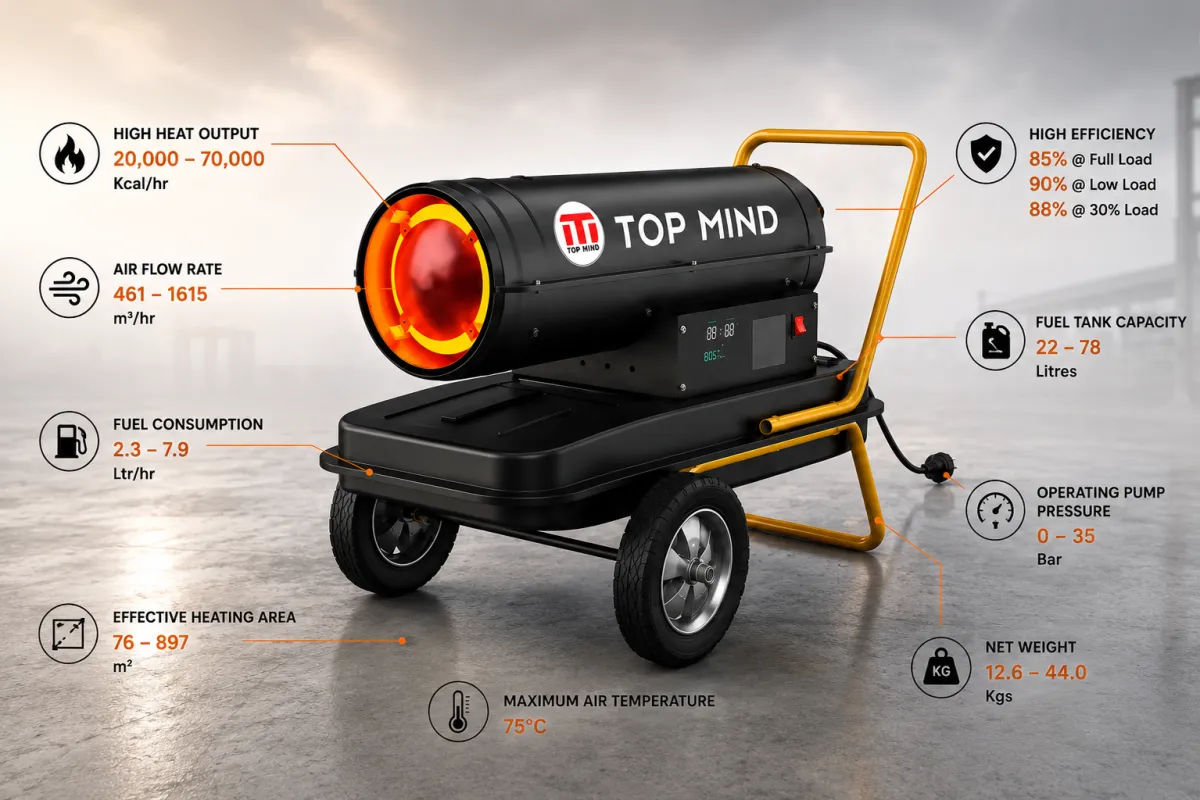

Technical Specifications
| Heat Output Capacity | 20,000 – 70,000 Kcal/hr |
| Rated Heat Input | 25.9 – 96.1 kW |
| Rated Useful Heat Output (Pn) | 23.3 – 81.7 kW |
| Useful Efficiency – Full Load | 85.0% |
| Useful Efficiency – Low Load | 90.0% |
| Useful Efficiency @ 30% Load | 88.0% |
| Maximum Air Temperature | 75°C |
| Operating Pump Pressure | 0 – 35 Bar |
| Air Flow Rate | 461 – 1,615 m³/hr |
| Fuel Tank Capacity | 22 – 78 Litres |
| Fuel Consumption | 2.3 – 7.9 Ltr/hr |
| Effective Heating Area | 76 – 897 m² |
| Net Weight | 12.6 – 44.0 kg |
| Flue Gas Temperature | 180°C |
| Flue Gas Mass Flow Rate | 0.009 – 0.032 kg/sec |
| Furnace Pressure | 0.3 – 0.9 mbar |
